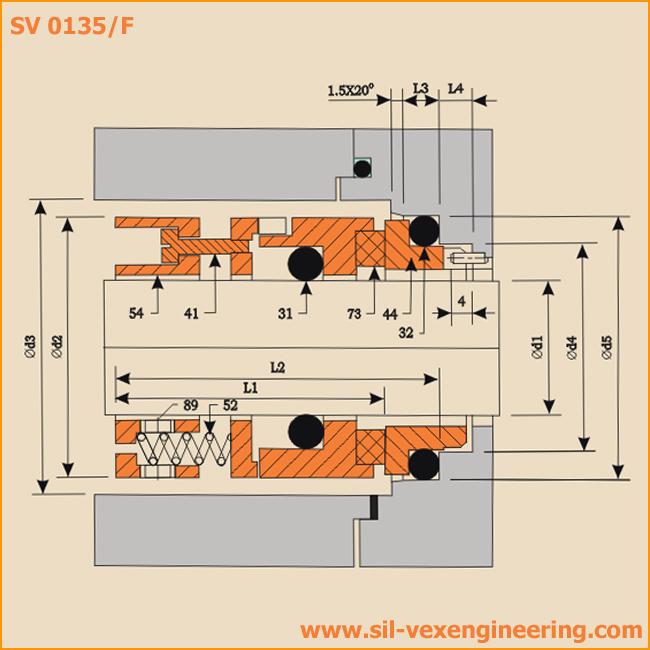

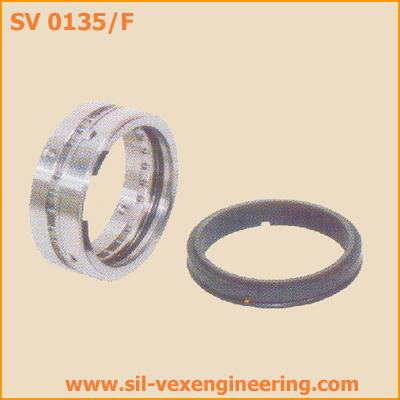

These type of seals are multi coil spring with elastomeric 'o' rings. Designed for unversal applicanons.
For easy installation and removal of the seal all components are held together by a drive pin.these seals function independent of direction of rotation.

Standard Style

Face Material:
Cast Chrome Steel,
Carbon,Ceramic(99.5%)
Silicon Carbide
Tungsten Carbide

Metal Parts:
AISI 316, 304

Secondary Seal:
SV F : Elastomer's 'O' Ring and Bellow

Operating Limits:
Shaft Diameter d1: 30...150mm
Pressure           P : 10 bar
Temperature     t : -20...+180°C

Seal Characteristics:
Single Acting
Inside Mounted
Independent of Direction of Rotation
Unbalanced
