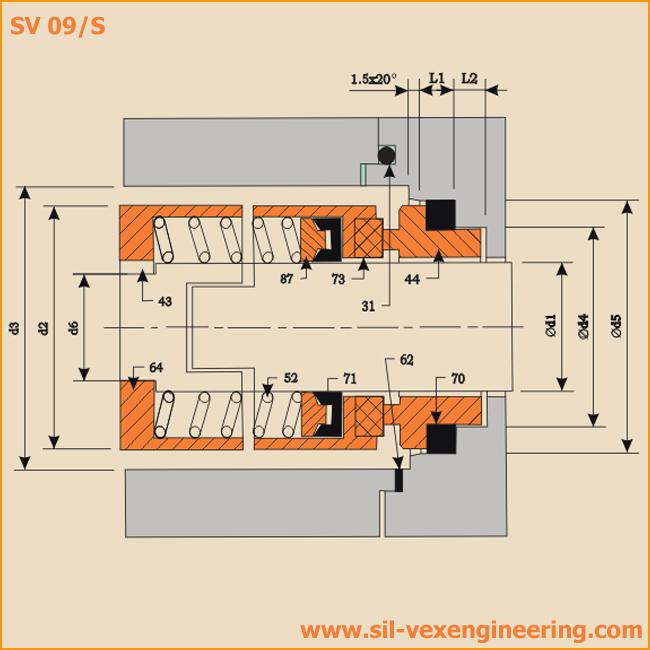

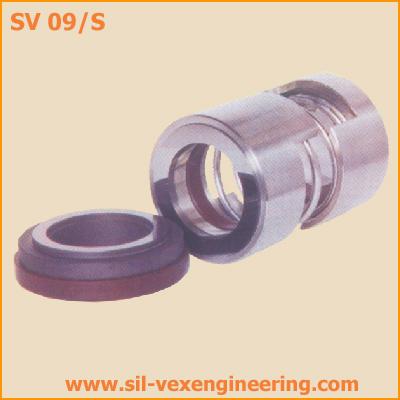

SV 09/S

These type of Seals are single coil spring, Designed to handle chemicals of varing contamination. These seals function indepedent of direction of Rotation. materials can be offered to meet specific requirements.

Standard Style

Face Material:
Carbon,Chrome Cast Steel,
Tungsten Carbide

Metal Parts:
AISI 316, 304

Secondary Seal:
SV S : Elastomer 'U' cup and Waisher



Operating Limits:
Shaft Diameter d1: 10...100mm
Pressure           P : 16 bar
Temperature     t : -20...+200°C

Seal Characteristics:
Single Acting
Independent of Direction of Rotation
Unbalanced
