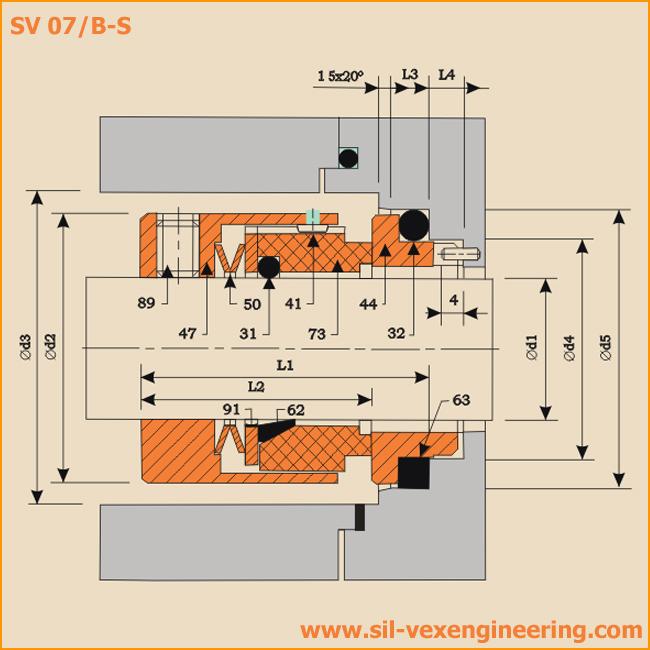

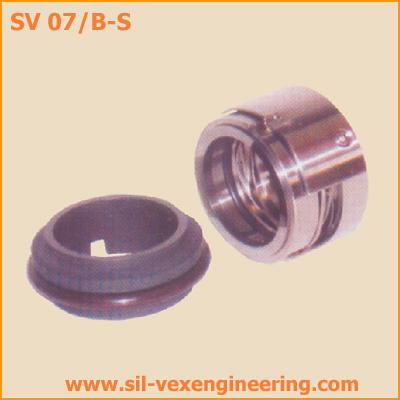

SV 07/B-S

These Type of Seals single wave spring suitable for most general applications. Major advantage of these seals is due to use of single wave spring it is of compact design with reduse axial length, these seals can also be used in dirty application as spring clogging does not occur. torque transmission from retainer shell to seal ring is through drive pin which ensures full moility and adoptation of the sealing surface even with small run-outs.

Standard Style

Face Material:

Carbon,Ceramic(99.5%)
Silicon Carbide, Stellite
Tungsten Carbide.

Metal Parts:
AISI 316, 304

Secondary Seal:
SV B : Elastomer's 'O' Ring
SV S : PTFE Wedge



Operating Limits:

Shaft Diameter d1: 18...100mm
Pressure           P : 10 bar
Temperature     t : -45...+200°C

Seal Characteristics:
Single Acting
Inside Mounted
Independent of Direction of Rotation
Unbalanced
