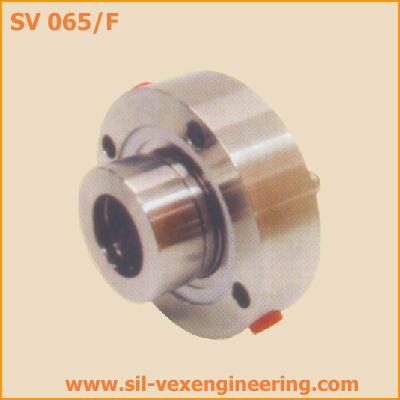

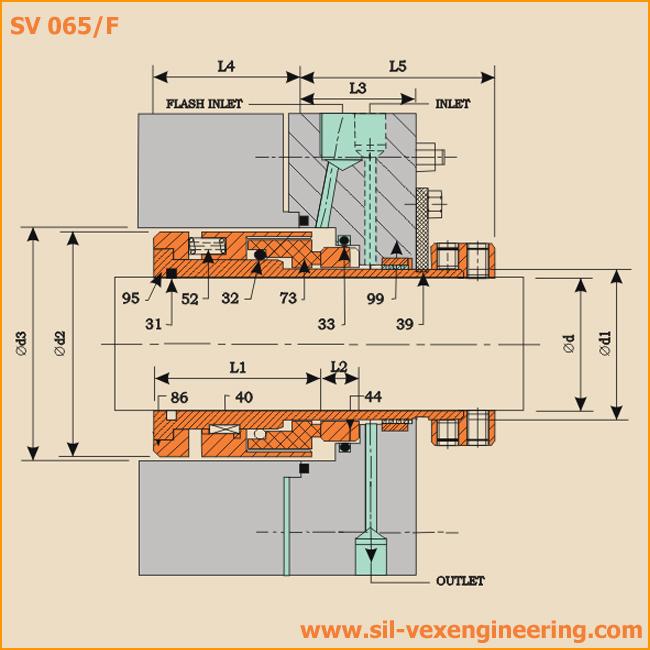

SV 065/F

This type of seal is specially designed cartridge seal for pumps handling oil, water and other fluids whis are being pumped at very high pressure. These seals are widely used on pipe line pump and boiler feed water pumps. Very sturdy design and drive arrangement makes the seal suitable for very high pressure. This being multiple spring seal it provides uniform face loading.

Standard Style

Face Material:
Carbon,Ceramic(99.5%)
Silicon Carbide
Tungsten Carbide

Metal Parts:
AISI 316

Secondary Seal:
SV F : Elastomer's 'O' Ring



Operating Limits:
Shaft Diameter d1: 25...100mm
Pressure           P : 80 bar

Seal Characteristics:
Single Acting
Multiple Spring Design
Independent of Direction of Rotation
Balanced
Sturdy Drive Mechanism
