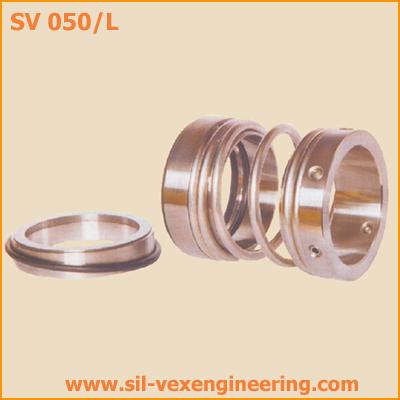

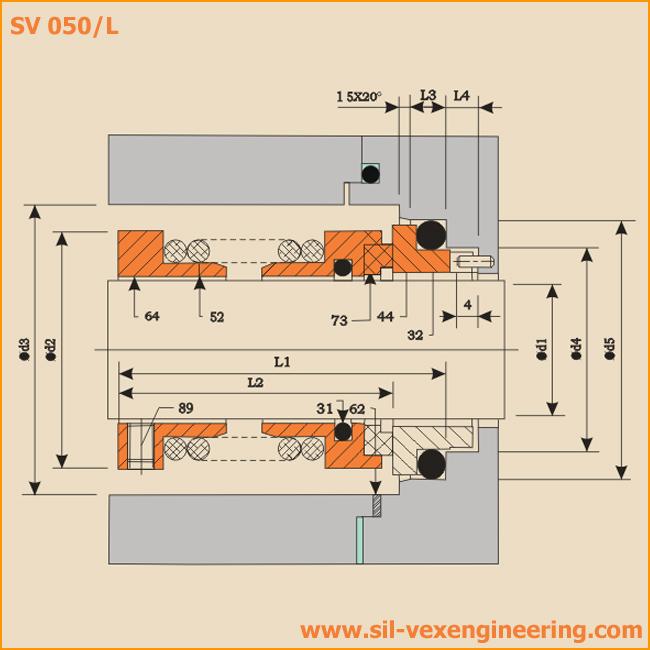

SV 050/L

These Type of Seals with single coil are designed to handle liquid of varying contaamination including sluries, sludges, sewage, viscous or abrasive media etc.

Standard Style

Face Material:
Cast Chrome Steel
Carbon,Ceramic(99.5%)
Silicon Carbide
Tungsten Carbide

Metal Parts:
AISI 316, 304

Secondary Seal:
SV L : Elastomer's 'O' Ring



Operating Limits:
Shaft Diameter d1: 10...100mm
Pressure           P : 10 bar
Temperature     t : -100...+200°C

Seal Characteristics:
Single Acting
Inside Mounted
Independent of Direction of Rotation
Balanced
