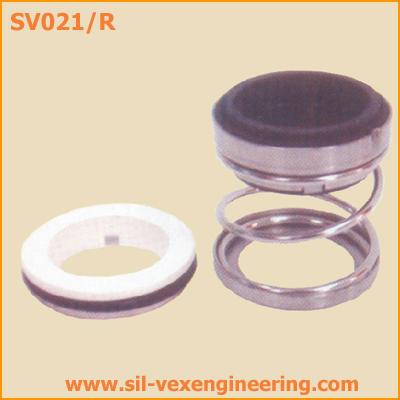

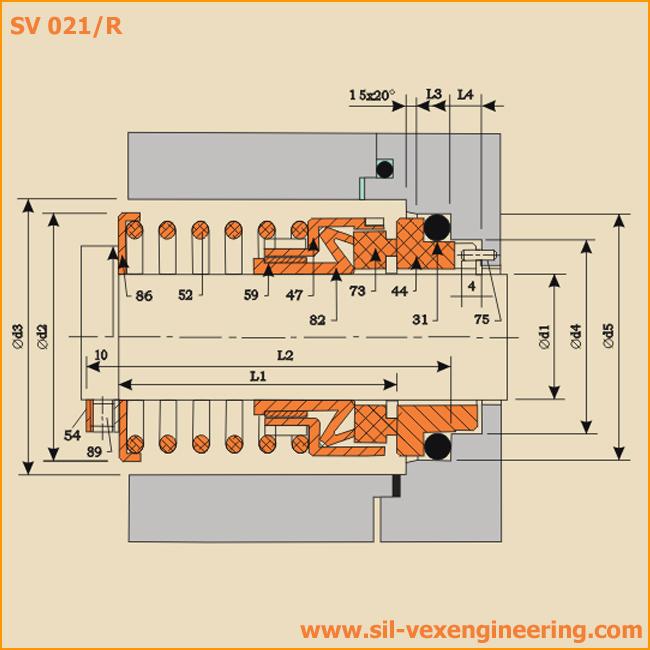

SV 021/R

These Type of Seals are single coil spring with Elastomeric Bellows,Designed for Water, Oils and Light Duties.
These Seals function independent of Direction of Rotation. Special materials can be offered to meet specific requirements.

Standard Style

Face Material:
Carbon,Chrome Steel

Metal Parts:
AISI 316, 304

Secondary Seal:
SV-R: Elastomers 'O' Ring & Bellow



Operating Limits:
Shaft Diameter d1: 10...100mm
Pressure           P : 16 bar
Temperature     t : -20...+200°C

Seal Characteristics:
Single Acting
Torque Transmission by Elastomer Collar
Independent of Direction of Rotation
Unbalanced
