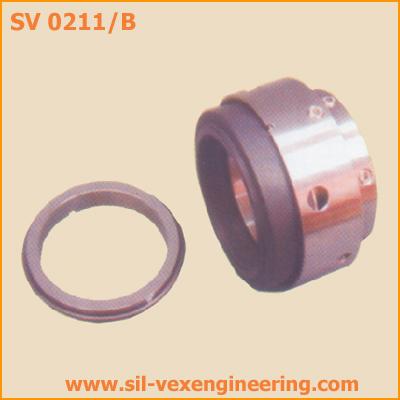

SV 0211/B

These type of seals are multi spring with elastomeric 'o' ring. Designed for pharma industries ,chemical industries, etc. Special faces can be offered to meet the requirment without having to modify any dimensions. These seals function independent of direction of rotation.

Standard Style

Face Material:
Cast Chrome Steel
Carbon,Ceramic(99.5%)
Silicon Carbide
Tungsten Carbide

Metal Parts:
AISI 316, 304

Secondary Seal:
SV B : Elastomer's 'O' Ring



Operating Limits:

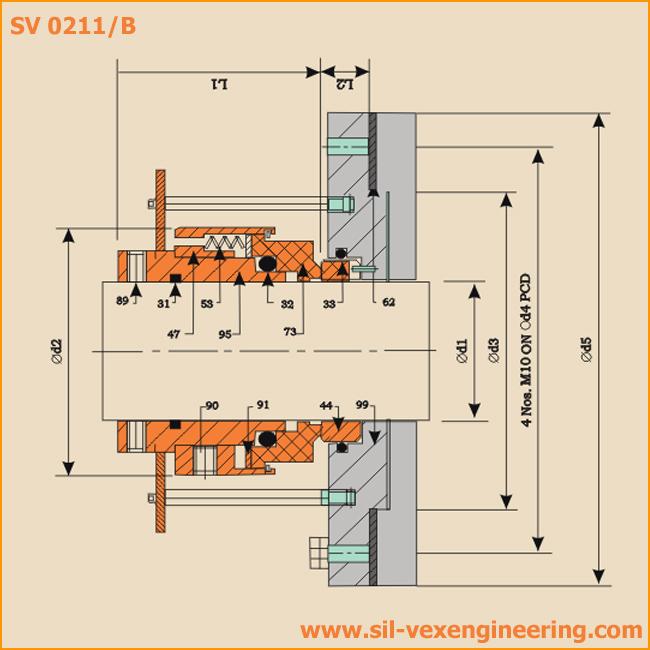

Shaft Diameter d1: 25...100mm
Pressure           P : 20 bar
Temperature     t : 150°C

Seal Characteristics:
Single Acting
Outside Mounted
Independent of Direction of Rotation
Balanced
