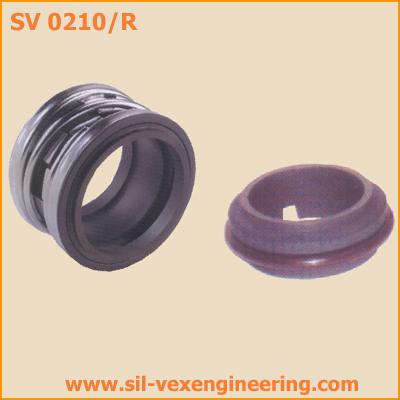

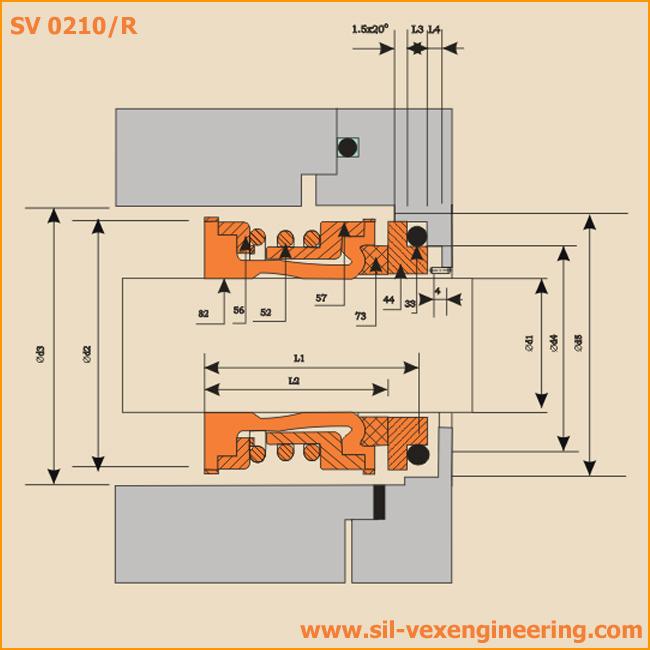

The type SV 0210 is a compact unitized single spring elastomer bellows. designed for waste water, sewage applications..special faces can be offered to meet the requirement without having to modify any dimension. these seal function independent of direction of rotation.

Standard Style

Face Material:
Cast Chrome Steel
Carbon,Ceramic(99.5%)
Silicon Carbide
Tungsten Carbide

Metal Parts:
AISI 316, 304

Secondary Seal:
SV R : Elastomer's 'O' Ring and waisher

Operating Limits:
Shaft Diameter d1: 10...100mm
Pressure           P : 20 bar
Temperature     t : -40...+180°C

Seal Characteristics:
Single Acting
Outside Mounted
Independent of Direction of Rotation
Unbalanced
