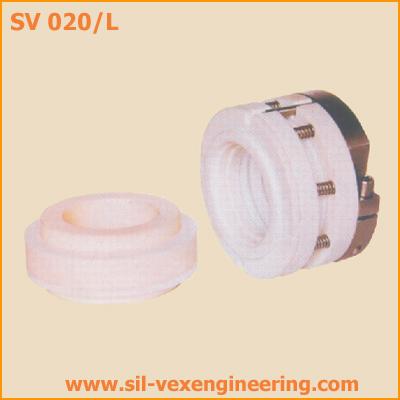

SV 020/L

These type of seals are developed for highiy sarcastic and strong acid, chemical, salts, etc. also can be used for very strong oxidising and redusinagents. The seal components which comes in contact with the sealing liquid are finished by chemically inert material.

Standard Style

Face Material:

Carbon,Ceramic(99.5%)
GFT,Silicon Carbide.

Metal Parts:
AISI 316, 304

Secondary Seal:
SV L : PTFE Bellow



Operating Limits:

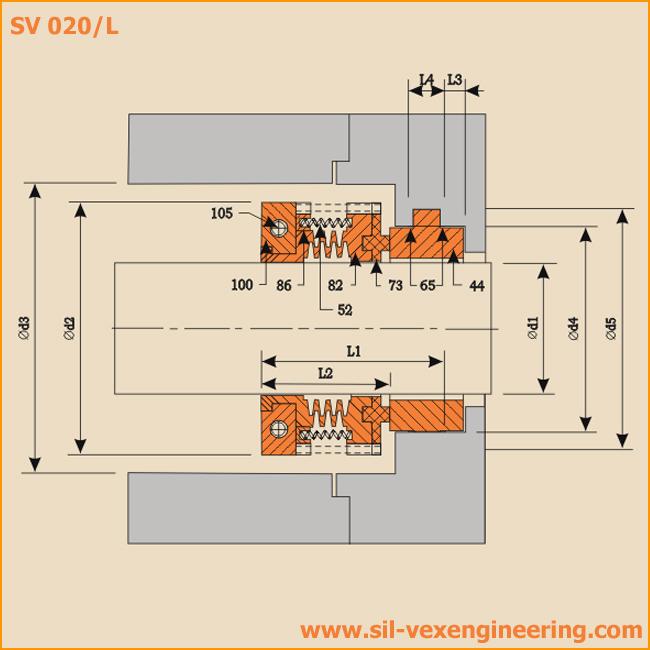

Shaft Diameter d1 : 18...100mm
Pressure           P : 10bar
Temperature     t : -40...+250°C

Seal Characteristics:
Single Acting
Outside Mounted
Independent of Direction of Rotation
Balanced
