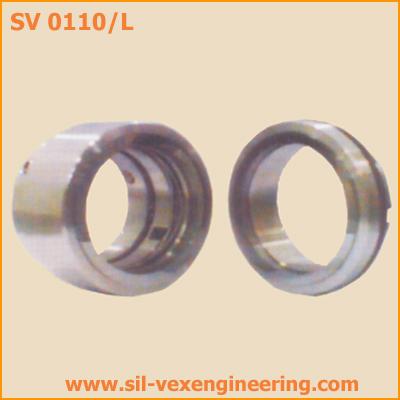

These type of seals single wave spring suitable for most general applications. These seals can also be used in dirty application as spring clogging does not occur. Torque transmission from retainer shell to seal ring is through drive pin which ensures full mollity and adopt a tion of the sealing surf ace even with small run-outs.

Standard Style

Face Material:
Cast Chrome Steel
Carbon,Ceramic(99.5%)
Silicon Carbide
Tungsten Carbide

Metal Parts:
AISI 316, 304

Secondary Seal:
SV L : Elastomer's 'O' Ring

Operating Limits:

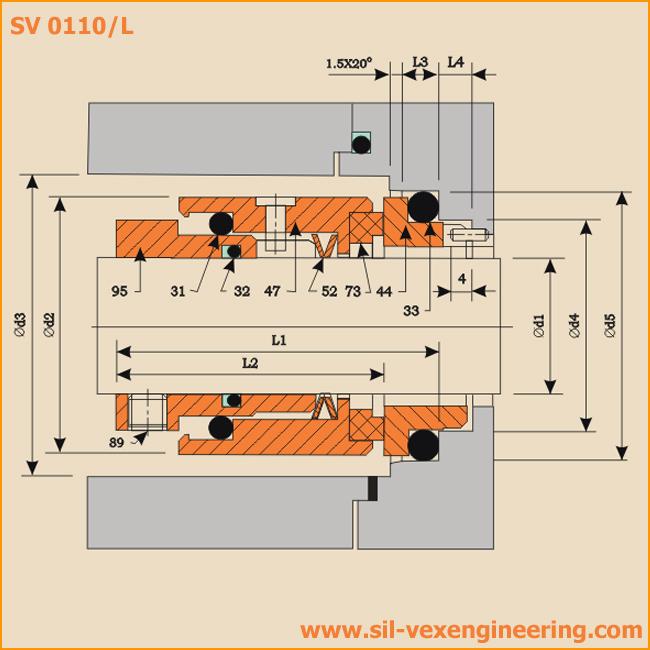

Shaft Diameter d1: 18...80mm
Pressure           P : 10 bar
Temperature     t : -20...+180°C

Seal Characteristics:
Single Acting
Inside Mounted
Independent of Direction of Rotation
Unbalanced
