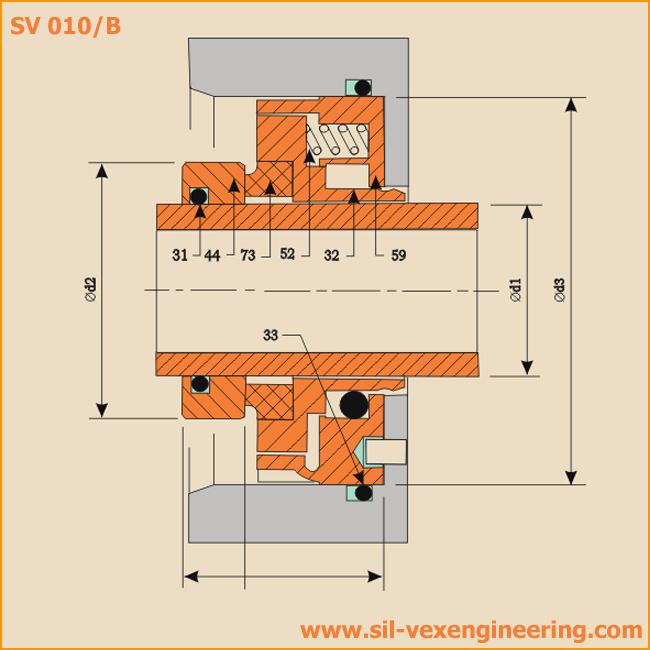

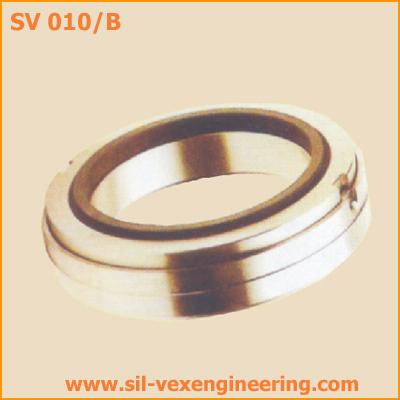

SV 010/B

These type of seals have ashort installation length (axial). These seals are compact ready to fit seal which can be installed in the same axial length as a 'lip Seal' and can be used to seal differential prresure of upto 25 bar.

Standard Style

Face Material:

Tc, Silicon
Ceramic, Teflon

Metal Parts:
AISI 316, 304

Secondary Seal:
SV B : Elastomer's 'O' Ring



Operating Limits:

Shaft Diameter d1: 10...100mm
Pressure           P : 25 bar
Temperature     t : -20...+180°C

Seal Characteristics:
Single Acting
Multiple Spring
Independent of Direction of Rotation
Balanced
