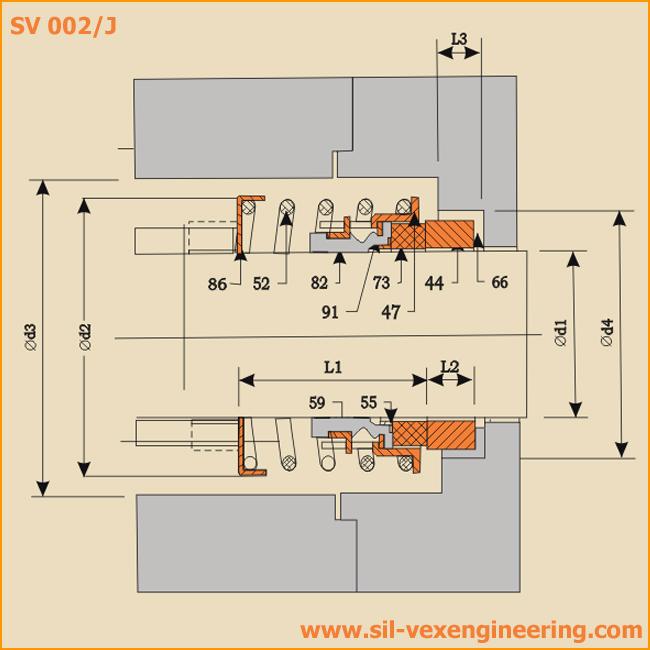

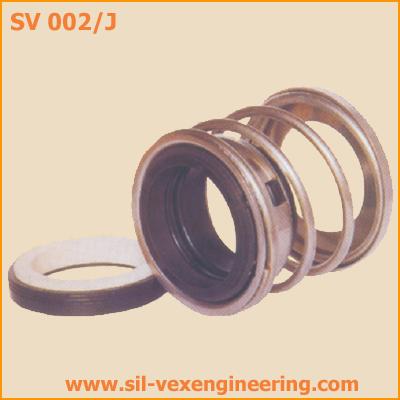

SV 002/J

These type of Seals are Single Coil Spring with Electrometric Bellows, Designed for Water, Oils and Light Duties. These seals function independent of direction of rotation. Special Materials can be offered to meet specific requirements.

Standard Style

Face Material:
Cast Chrome Steel,
Carbon,Ceramic(99.5%)
Silicon Carbide
Tungsten Carbide

Metal Parts:
AISI 316, 304

Secondary Seal:
SV-J : Elastomer's 'O' Ring and Bellow



Operating Limits:
Shaft Diameter d1: 10...100mm
Pressure           P : 30 bar
Temperature     t : -40...+180°C

Seal Characteristics:
Single Acting
Torque transmission by elastomer collar
Independent of Direction of Rotation
Unbalanced
