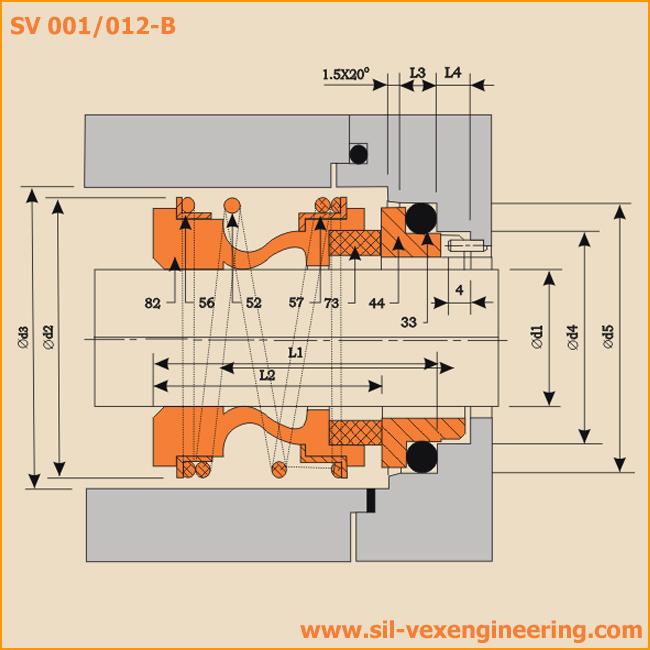

SV 001/012-B

These type of Seals are Single Coil Spring with Elastomeric Bellows. Designed for Waste Water, Sewage Applications.
Special Faces can be offered to meet the requirement without having to modify any dimensions. These seals function independent of direction of rotation.

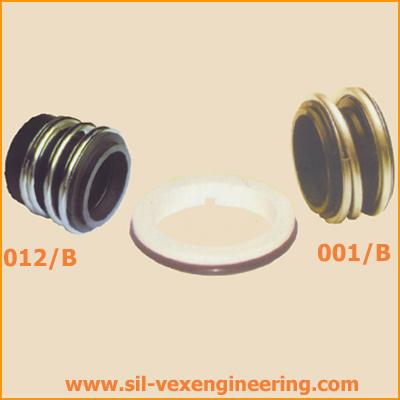

SV-012/B : dimension, items & designations same as SV-001/B, but with an extented bellows tails to achive the fitting length.

Standard Style

Face Material:
Cast Chrome Steel
Carbon,Ceramic(99.5%)
Silicon Carbide
Tungsten Carbide

Metal Parts:
AISI 316, 304

Secondary Seal:
SV B : Elastomer's 'O' Ring and Waisher



Operating Limits:
Shaft Diameter d1: 10...100mm
Pressure           P : 10 bar
Temperature     t : -20...+180°C

Seal Characteristics:
Single Acting
Outside Mounted
Independent of Direction of Rotation
Unbalanced
